What is F17 formply? AS2269 standard for Australian construction
Professional F17 film faced formwork plywood complying with AS2269 standard. High reusability for concrete construction, bulk wholesale FOB price, shipping to Sydney, Melbourne, Brisbane. Get latest quotation
Table of Contents
· What Is F17 formply?
· Why the Substrate Matters?
· Is F17 formply suitable for multiple concrete pours
· EVERFORMLY Formply F17 Primary Specifications
· Common Mistakes Buyers Make
· Conclusion
What is F17 formply?
The Australian F17 grade imposes rigorous requirements regarding raw materials, manufacturing processes, and physical properties. Standard specifications typically include dimensions of 1200x1800mm and 1200x2400mm with a standard thickness of 17mm. The panel surfaces feature a black phenolic waterproof overlay, offering easy form release, wear resistance, and impermeability. The bonding process utilizes WBP (boiling-water-proof) adhesive meeting Class A standards, making the panels suitable for outdoor construction and repeated reuse.
F17 is a mainstream, high-strength product and the standard grade for mid-to-high-end construction formwork. This grade of film-faced concrete plywood is widely used in cast-in-place concrete projects, including building floor slabs, walls, beams, and columns, as well as bridges and municipal infrastructure.
F17 formply with durable black/brown film face, WBP waterproof glue, suitable for repeated concrete pouring. Standard size 2400×1200mm, bulk export to Australia builders & contractors. Inquiry for price list.
Why the Substrate Matters?
F17 is a structural-grade formwork panel, not an ordinary decorative board; its three key raw materials—the solid wood core, waterproof phenolic resin, and high-density film coating—determine its structural strength, water resistance/durability, and concrete finish quality, respectively. Downgrading any of these materials directly compromises the performance standards for which F17 is designed, leading to multiple losses regarding safety, construction schedules, and costs; therefore, raw material quality is the fundamental determinant of F17 compliance.
The F17 formwork panels manufactured at our factory feature all-hardwood cores—such as eucalyptus or birch，that making Everformly products exceptionally strong and durable.Everformly's F17 raw material uses a high-hardness wood core with a bending strength >30MPa, which can withstand the pouring and pressure of concrete well, and will not deform even when the formwork is erected at high altitudes.
Is F17 formply suitable for multiple concrete pours？
Everformly F17 formply is specifically engineered and fully suitable for multiple repeated concrete pours — it is the standard reusable structural formwork plywood in Australia/NZ under AS/NZS 2269 & AS 6669, designed for multi-cycle site use.
Standard phenolic film-faced F17 (17mm A/C grade, most common):
Basic site care: 10–15 pours.Full maintenance (cleaning, release agent, edge sealing, dry storage): 15–20 pours.Premium HDO high-density film F17: up to 25+ pours
For comparison, lower-grade F14 only delivers ~5–12 reuses, making F17 far better for multiple pours.
Because of high structural strength (17 MPa bending grade),resists deflection and concrete lateral pressure across repeated pours; holds shape far longer than lighter grades.
We use waterproof Type A phenolic WBP glue bond,Waterproof and weather-resistant, no delamination after long-term outdoor service
Phenolic glue maintains intact bonding after 72 hours of boiling water immersion; ordinary urea-formaldehyde glue will delaminate rapidly when soaked in rainwater or concrete curing water, rendering the formwork completely unusable.
Environmental Protection and Construction Compliance
Qualified E0-grade phenolic glue emits formaldehyde at ≤0.5mg/L; low-cost adhesives contain excessive formaldehyde, create pungent fumes during indoor construction, and fail to pass construction site environmental inspections.
Resistance to Alkaline Corrosion from Cement
Concrete is highly alkaline. Inferior adhesives undergo alkaline hydrolysis, causing panel delamination and damage, making them unsuitable for humid projects such as bridges and basements.

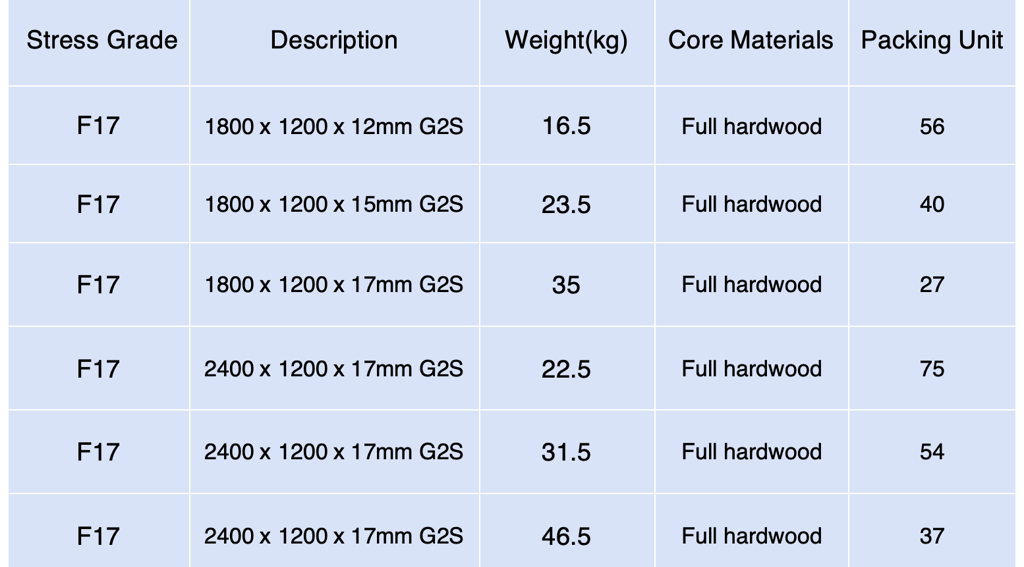

EVERFORMLY Formply F17 Primary Specifications
Common Mistakes Buyers Make
1.Ignoring the WBP Bond Durability Requirement
Many buyers only check the "F17" label and take "waterproof" claims at face value, without verifying the adhesive performance. For repeated concrete pours, the formply must meet AS 6669 Type A bond (100% phenolic resin) and pass the AS/NZS 2098.2 boiling test to resist high moisture, UV radiation and extreme temperature changes. Low-quality products with non-WBP adhesives will suffer surface delamination after just a few uses, ruining concrete finishes and causing costly rework.
2.Selecting Thickness Based on Price Rather Than Actual Pour Conditions
Buyers often choose thinner sheets to cut costs, without considering span, support spacing and pour height. If the panel is too thin, rippling, sagging or joint movement will occur between supports, leading to deformed concrete surfaces. Conversely, over-specifying unnecessary extra thickness wastes money and slows down on-site handling efficiency.
3.Treating F17 Formply as an Independent System Without Matching Supporting Components
Even high-quality F17 formply will underperform if buyers neglect the rest of the formwork system. Mismatched LVL framing, improper bracing spacing or poor joint sealing will amplify deflection, reduce the number of reusable pours, and even cause formwork failure under the lateral pressure of fresh concrete.
4.Overlooking Reusability Performance Benchmarks
Many buyers only focus on one-time structural compliance, ignoring that F17 is the minimum safety and reusability benchmark for high-rise core walls and major infrastructure. They fail to confirm that the product's modulus of elasticity and bending strength are well above the F17 threshold, resulting in far fewer repeated pours than expected and poor return on investment.
Conclusion
F17 formply is the industry standard reusable formwork material for multiple concrete pours. With standard care it reliably delivers 10+ pours; with full maintenance it achieves 15–20 reuses before surface/structural degradation requires replacement.
Everformly F17 Formply is more than just a product; we aim to provide a comprehensive, innovative solution for concrete formwork. We manufacture robust, safe, and reliable formwork panels using all-hardwood cores (eucalyptus or birch), Class A WBP (Water-Boil-Proof) phenolic adhesive, and a phenolic surface overlay. Driven by rigorous raw material control and a commitment to sustainability, Everformly F17 Formply optimizes the entire construction process—choose Everformly F17 Formply for a worry-free construction experience.
